Form Factor |
ATX |
|
(Size) |
12.0-in x 8.8-in |
|
30.5 cm x 22.4 cm |
|
|
Chipset |
B450 |
|
Socket |
AM4 |
|
I/O Cover |
N/A |
|
Power Phase |
9 |
|
CPU Power Cap. |
Solid Caps |
|
Memory |
4 DIMMs, |
|
DDR4-3200+(OC) |
|
|

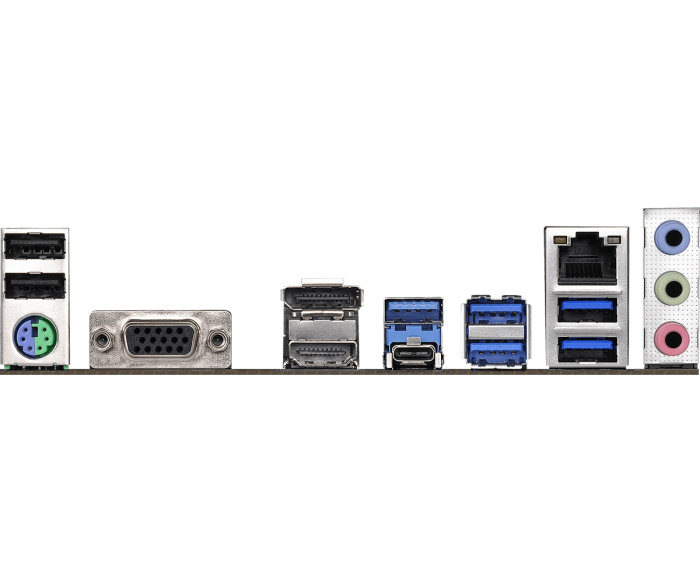

Graphic Outputs |
DP, HDMI, D-Sub |
|
SLI & CF |
2-Way CrossFireX |
|
Expansion Slots |
2 x PCIe 3.0 x16 |
|
4 x PCIe 2.0 x1 |
|
|
Audio |
7.1 CH, Realtek ALC892, Creative Sound Blaster? Cinema 5 |
|
LAN |
Realtek 8111H |
|
Wireless LAN |
N/A |
|
Storage |
6 x SATA3 |
|
M.2 |
1 x Ultra M.2 (Gen3 x4) |
|
1 x M.2 (Gen3x2 & SATA3) |
|
|
Onboard LED |
Yes (mono) |
|
RGB LED Header |
1 x 4 Pin |
|
1 x AMD Fan LED |
|
|
1 x Addressable LED |
|
|
USB 3.1 |
Type-A+C |
|
USB 3.0 |
6 x USB 3.0 |
|
(2 Front, 4 Rear) |
|
|
6 x USB 2.0 |
|
|
(4 Front, 2 Rear) |
