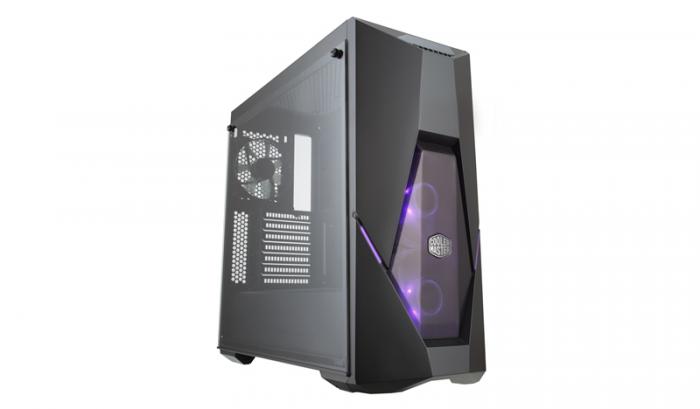

| Product Name | MasterBox K500 | |
| Product Number | MCB-K500D-KGNN-S00 | |
| Available Color | Black | |
| Materials | Steel, Plastic, Tempered Glass | |
| Dimensions (LxWxH) | 491 x 210 x 455mm | |

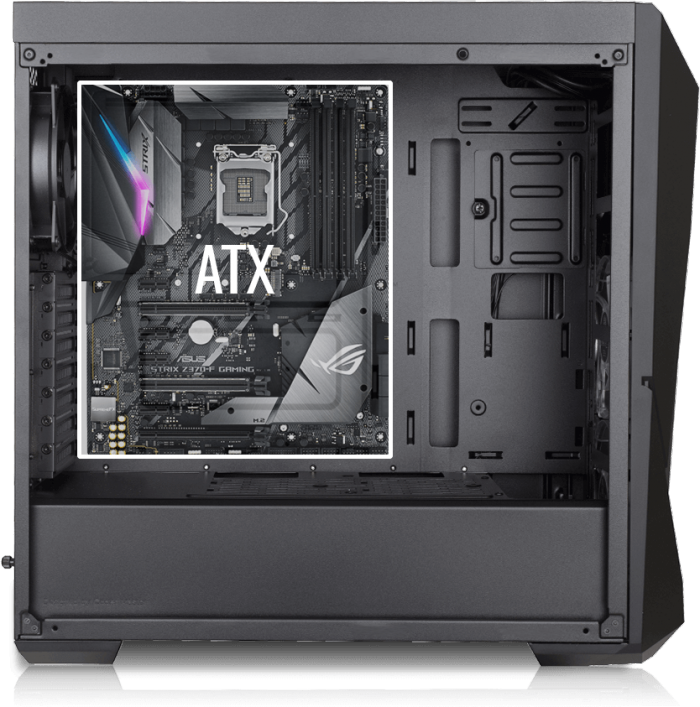

| Motherboard Support | ATX, Micro-ATX, Mini-ITX | |
| Expansion Slots | 7 | |
| Drive Bays | 5.25" | N/A |
| 3.5" HDD | 2 (Max. 2) | |
| 2.5" SSD | 1 (Max. 6) | |

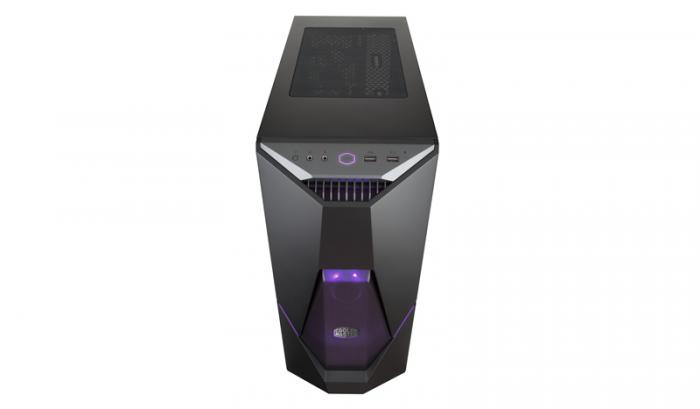

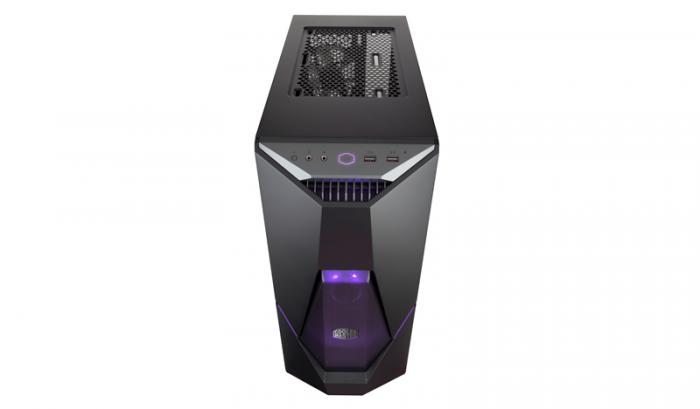

| I/O Port | USB 3.0 x 2, Audio In / Out | |

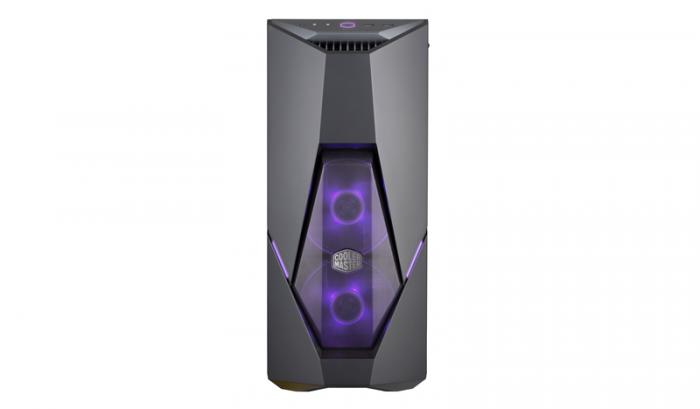

| Pre-installed Fan(s) | Front | 120mm x 2 RGB LED fan |
| Rear | 120mm x 1 black fan | |

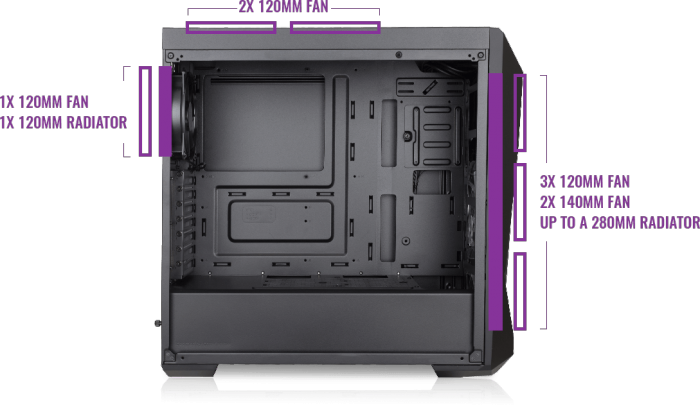

| Fan Support | Front | 120mm x 3 / 140mm x 2 |
| Top | 120mm x 2 | |
| Rear | 120mm x 1 | |
| Bottom | N/A | |
| Radiator Support | Front | 120/140/240/280mm |
| Rear | 120mm | |
| Clearances | CPU Cooler | 160mm |
| PSU | 180mm | |
| GPU | 400mm | |
| Cable Routing | Behind MB Tray | 15-23mm |
| Dust Filters | Front, Top, Bottom | |
| Power Supply | Bottom mount, ATX | |
| EAN Code | 4719512071120 | |
| UPC Code | 884102043628 | |
