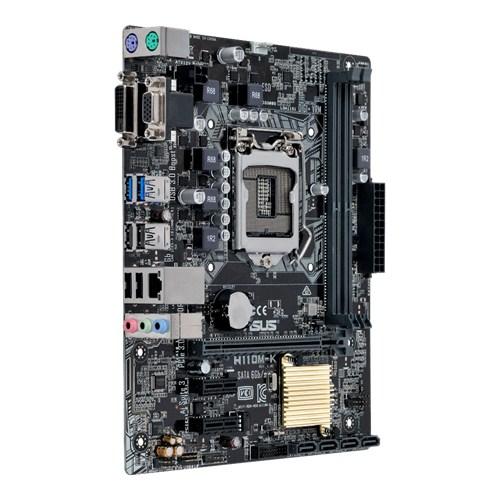

華碩 H110M-K D4 盒裝
華碩 H110M-K D4 盒裝
M-ATX / 1A1D / U3 / 四年
  • 5重防護 II – 先進的全方位硬體防護
  • DDR4 記憶體相容性
  • 壯闊的遊戲音效與 LED 發光屏蔽
  • 業界聞名的 UEFI BIOS 與 EZ Flash 3
商品已下架
商品圖片
  • 華碩 H110M-K D4 盒裝
  • 華碩 H110M-K D4 盒裝
  • 華碩 H110M-K D4 盒裝
  • 華碩 H110M-K D4 盒裝
  • 華碩 H110M-K D4 盒裝
  • 華碩 H110M-K D4 盒裝

商品規格

  • CPU
    Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® 處理器
    支援 Intel® 14 nm CPU
    支援 Intel® Turbo Boost 技術2.0

    *有關支援的 CPU 型號資訊,請參閱 tw.asus.com 網站內容。
    * 是否支援 Intel® Turbo Boost Technology 2.0,需視 CPU 類型而定。
  • 晶片組
    Intel® H110
  • 記憶體
    2 x DIMM, 最高可支援到32GB, DDR4 2133 MHz 非ECC, 無緩衝區 記憶體
    雙通道 記憶體架構
    *是否支援 Hyper DIMM 需視個別 CPU 的實體特性而定。
    支援 Intel® Extreme Memory Profile (XMP)
    *有關記憶體合格廠商清單(QVL)的相關資訊,請參閱 www.asus.com 網站或本使用手冊。
    * The maximum memory frequency supported varies by processor.
  • 顯示晶片
    Integrated Graphics Processor- Intel® HD Graphics support
    支援多 VGA 輸出 : DVI-D/RGB 連接埠
    - 支援 RGB 最大解析度 1920 x 1200 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    最大共享記憶體 1024 MB
    支援 Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  • 擴充槽
    1 x PCIe 3.0/2.0 x16 (x16 mode, 灰色)
    2 x PCIe 2.0 x1
  • 資料儲存應用
    Intel® H110 chipset :
    4 x SATA 6Gb/s埠, 灰色
  • 區域網路
    Realtek® RTL8111H, 1 x Gigabit 區域網路控制器
  • 音效
    Realtek® ALC887 8 通道 高傳真音效 CODEC
    - 支援 : 插頭偵測, 前面板插孔指定功能
    Audio Feature :
    - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • USB連接埠
    Intel® H110 chipset :
    6 x USB 2.0/1.1 連接埠 (4 位於背板, 黑色, 2 位於主機板中, Type-A)
    Intel® H110 chipset :
    4 x USB 3.0/2.0 連接埠 (2 位於背板, 藍色, 2 位於主機板中, Type-A)
  • 獨特功能
    華碩 EPU :
    - EPU
    ASUS 5X Protection II :
    - ASUS LANGuard - 2.5X higher surge tolerance
    - ASUS Overvoltage Protection - World-class circuit-protecting power design
    - ASUS DIGI+ VRM - 5 Phase digital power design
    - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
    - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
    華碩獨家功能 :
    - 防突波
    - AI Suite 3
    - Ai Charger
    - USB 3.0 Boost
    - 硬碟容量解鎖
    - Mobo Connect
    - PC Cleaner
    華碩靜音散熱解決方案 :
    - 風格獨特的無風扇設計 - 散熱解決方案
    - 華碩 Fan Xpert
    華碩 EZ DIY :
    - 華碩 CrashFree BIOS 3
    - 華碩 EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - Push Notice
    華碩 Q-Design :
    - 華碩 Q-Slot
    - 華碩 Q-DIMM
    Media Streamer
  • Operating System Support
    Windows® 10 , 64bit
    Windows® 8.1 , 64bit
    Windows® 7 , 32bit/64bit *2

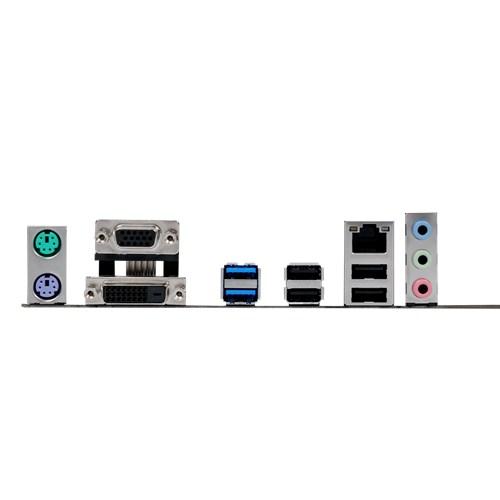

  • 後面板輸出端子
    1 x PS/2 鍵盤(紫)
    1 x PS/2 滑鼠(綠)
    1 x DVI-D
    1 x D-Sub
    1 x LAN (RJ45) 連接埠
    3 x 音訊插孔
    2 x USB 3.0 (藍色) Type-A
    4 x USB 2.0
  • 內建 I/O 連接孔
    1 x USB 3.0 接頭支援額外的 2 USB 3.0 連接埠 (19-pin)
    1 x USB 2.0 接頭支援額外的 2 USB 2.0 連接埠
    1 x COM 接頭連接埠
    4 x SATA 6Gb/s 接頭
    1 x CPU 風扇接頭 (1 x 4 -pin)
    1 x 機殼風扇接頭 (1 x 4 -pin)
    1 x S/PDIF 輸出接頭
    1 x 24-pin EATX 電源接頭
    1 x 4-pin ATX 12V 電源接頭
    1 x 前面板音訊接頭 (AAFP)
    1 x 系統面板
    1 x Clear CMOS 跳線
    1 x 14-1 pin TPM connector

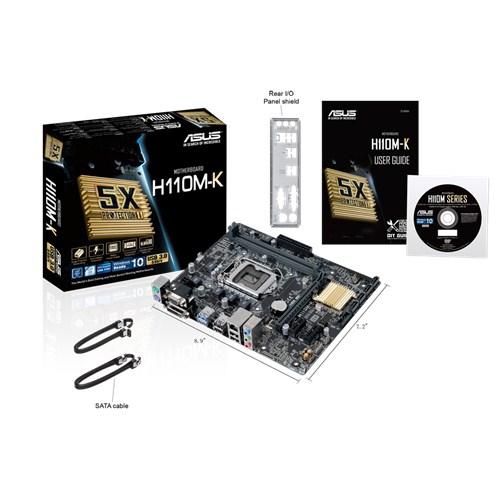

  • 配件
    使用者手冊
    I/O 擋板
    2 x Serial ATA 6.0Gb/s 纜線
    1 x Supporting DVD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • 管理能力
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • 支援光碟
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • 主機板尺寸
    mATX 主機板尺寸
    8.9 吋 x 7.2 吋 ( 22.6 公分 x 18.3 公分 )
  • 備註
    *1: 使用前面板具備 HD 音訊模組的機殼,方可支援 8 聲道音訊輸出。
    *2: 請參閱 ASUS 網站並下載「Windows® 7 安裝指南」和「ASUS EZ 安裝程式」,以便安裝 Windows® 7。*1: 使用前面板具備 HD 音訊模組的機殼,方可支援 8 聲道音訊輸出。
    *3: 以上資料僅供參考,官網規格如果變動,以官網為主,不另行通知。
